CNC Lathe Machine
Slant Bed STL12
Product Specification
| Unit | STL6 | STL10 | STL12 | |||||||

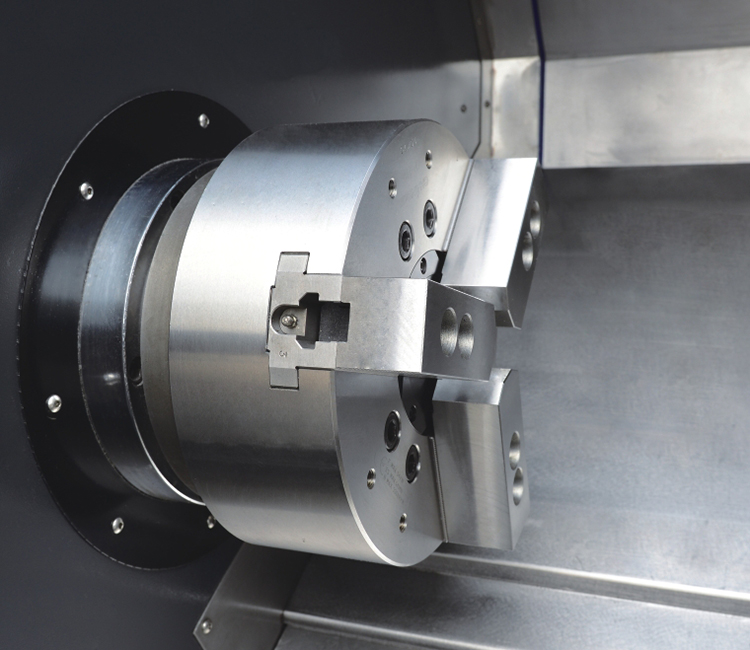

| Capacity | Chuck size | inch | 6",*8" | 8",*10" | 12",*15" | |||||
| Max.swing dia.over bed | mm | ø400 | ø500 | ø550 | ||||||
| Max,length of workpiece | mm | 300 | 750 | 750 | ||||||
| Max.swing dia.over slide | mm | ø200 | ø270 | ø290 | ||||||
| Spindle | Spindle bore | mm | ø48 | *ø55 | *ø62 | ø81 | *ø62 | ø105 | *ø105 | *ø120 |
| Max.dia.of through hole | mm | ø40 | *ø46 | *ø52 | ø70 | *ø52 | ø91 | *ø91 | *ø110 | |
| Spindle nose | type | A2-5 | *A2-5 | *A2-6 | A2-6 | *A2-6 | A2-11 | *A2-8 | *A2-11 | |
| Spindle speed | rpm | 3000 | *2500 | *2000 | 1600 | *2000 | 1000 | *1800 | *1000 | |
| *4500 | *4000 | *3500 | *2500 | *3500 | ||||||
| *5000 | *4000 | |||||||||
| Spindle motor power | kw | 5.5/7.5 | 7,5/11.0,*11.0/15.0 | 11.0/15.0,*15.0/18.0 | ||||||
| Axis | X axis travel | mm | 155 | 280 | 280 | |||||
| Zaxis travel | mm | 300 | 750 | 750 | ||||||
| X/Z rapid traverse | m/min | 18/7.5 | 15/20 | 15/20 | ||||||

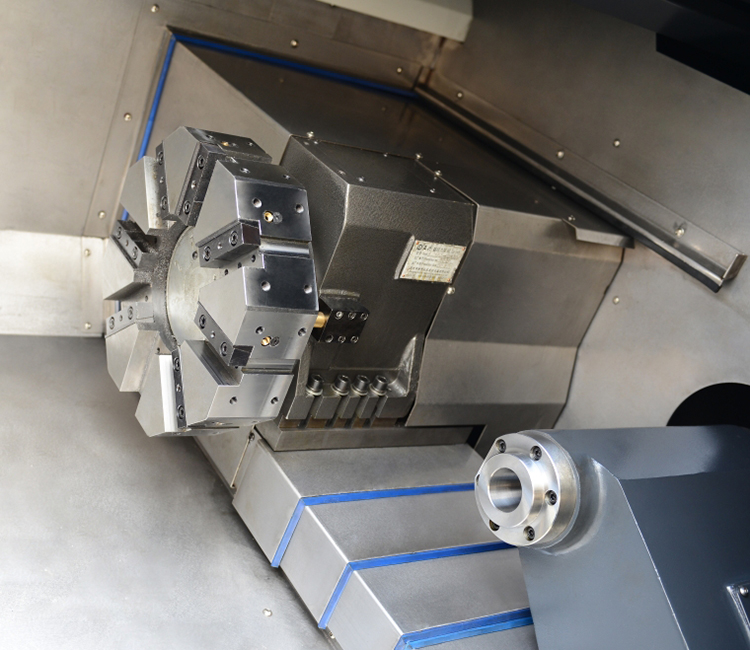

| Turret | Max.speed of drivingn tool | rpm | N/A | N/A | N/A | |||||
| No.of tool stations | nos | 8,*12 | 8,*12 | 8,*12 | ||||||
| Tool shank size | mm | 20x20,*16x16 | 25x25 | 25x25 | ||||||
| Tailstock | Type of tailstock | Hydraulic,*LM | LM | LM | ||||||
| Taper of tailstock quill | MT4 | MT5 | MT5 | |||||||
| Travel of tailstock quill | mm | 80 | 0 | 0 | ||||||
| Travel of tailstock | mm | 300 | 100-750 | 100-750 | ||||||
| Structure | Slant bed degree | 35° | 35° | 35° | ||||||
| Guideway type | LM | LM | LM | |||||||
| Others | Power capacity | KVA | 13 | 18 | 20 | |||||
| Overall dimension (LxWxH) | mm | 2130x1450x1600 | 3200x1900x2000 | 3200x1900x2000 | ||||||
| Weight(about) | kg | 2500 | 5000 | 5200 | ||||||
