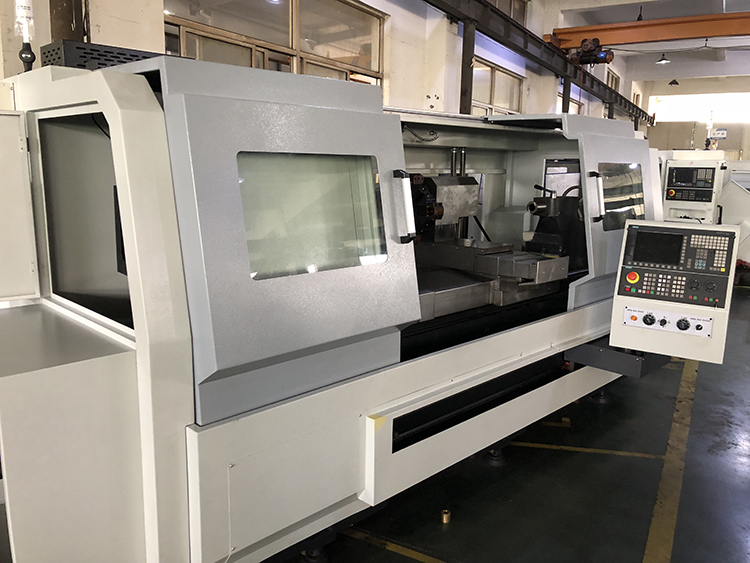

Product Specification
Unil | FTL300 | FTL320(*T) | FTL400(*T) | FTL500(*T) | FTL550(*T) | ||||||||
Capacity | Chuck size | type | 6" | 6",*8" | 8" | 10",*8" | 12",*15" | ||||||
Bed type/guideway | Flat/LM | Flat/LM | Flat/LM | Flat/LM | Flat/LM | ||||||||
Max.swing dia.over bed | mm | ø300 | ø400 | ø400 | ø500 | ø550 | |||||||
mm | 180 | 380(4 toolpost) | 650(center to center) | 1000/1500(center to center) | 1000/1500(center to center) | ||||||||
Max,length of workpiece | *300(8 station turret) | 500(chuck to center) | 850/1350(chuck to center) | 850/1350(chuck to center) | |||||||||
450(8/12station turret) | *750/1250(8/12station turret) | *750/1250(8/12station turret) | |||||||||||
Max.swing dia.over slide | mm | ø135 | ø140 | ø220 | ø260 | ø320 | |||||||
Spindle | Spindle bore | mm | ø48 | *ø55 | ø55 | *ø62 | *ø62 | ø81 | *ø62 | ø105 | *ø105 | *ø120 | |
Max.dia.of through hole | mm | ø40 | *ø46 | ø46 | *ø52 | *ø52 | ø70 | *ø52 | ø91 | *ø91 | *ø110 | ||
Spindle nose | A2-5 | *A2-5 | A2-5 | *A2-6 | *A2-6 | A2-8 | *A2-6 | A2-11 | *A2-8 | *A2-11 | |||
Spindle speed | rpm | 3000 | *2500 | 2500 | *2000 | 2000 | 1600 | *2000 | 1000 | *1800 | *1000 | ||
*4000 | *4000 | *4000 | *3500 | *3500 | *2500 | *3500 | |||||||
*5000 | *5000 | *4000 | *4000 | ||||||||||
Spindle motor power | kw | 4,0,*5,5 | 4,0,*5,5 | 5.5,*7.5 | 7.5,*11,*15 | 11,*15 | |||||||
Axis | X/Z travel | mm | 300/200 | 280/380 | 280/650 | 280/1000,280/1500 | 280/1000,280/1500 | ||||||
X/Z rapid traverse | m/min | 15/15,*25/25 | 25/15,*25/25 | 15/15,*20/20 | 15/15,*20/20 | 15/15,*20/20 | |||||||

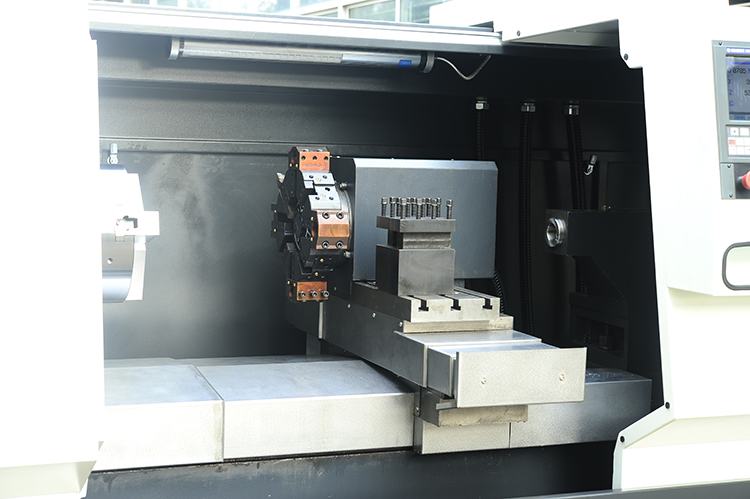

Tool post | Type | 4-station toolpost | 4-station toolpost | 4-station toolpost | 4-station toolpost | 4-station toolpost | |||||||
*gang type tooling | *8-station turret | *8-station turret | *8-station turret | *8-station turret | |||||||||
*gang type tooling | *gang type tooling | *gang type tooling | *gang type tooling | ||||||||||
No.of tool stations | nos | 4+2 | 4+2,*8+2 | 4+2,*8+2 | 4+2,*8+2,*Driven12 | 4+2,*8+2,*Driven12 | |||||||
Tailstock | Tailstock type | Manual,*Hydraulic | Manual,*Hydraulic | Manual,*Hydraulic | Manual,*Hydraulic | Manual,*Hydraulic | |||||||
Taper of quill | MT | MT4 | MT4 | MT4 | MT5 | MT5 | |||||||
Travel of tailstock quill | mm | 80 | 80 | 100 | 100 | 100 | |||||||
Others | Power capacity | KVA | 9 | 13 | 13 | 15 | 18 | ||||||
Dimensions(LxWxH) | mm | 1800x1580x1600 | 2200x1500x1600 | 2500x1400x1500 | 3400x1600x2010 | 3400x1600x2010 | |||||||
Weight(about) | kg | 1600 | 2100 | 2600 | 4300/4800 | 4500/5000 |
